Custom Injection Molded Automotive Air Duct for Vehicle HVAC and Airflow Systems
Complex automotive plastic air duct featuring curved airflow channels and integrated connection points, manufactured through custom injection molding.
- Complex Internal Geometry – Designed with internal passages and curved structures for controlled airflow.
- Lightweight Plastic Construction – Injection molded thermoplastic construction helps reduce component weight while maintaining functional performance.
- Custom Automotive Tooling – Mold design and tooling are developed around the required geometry, assembly method, and production requirements.
INJECTION MOLDING DESIGN GUIDE
1. Design Out Undercuts for Cost-Effective Injection Molding
Minimizing unnecessary undercuts can simplify injection mold design and reduce tooling complexity, cost, and maintenance requirements. Through DFM analysis, features such as snap-fits, side holes, hooks, and interference structures can often be redesigned for simpler mold construction.
Depending on the geometry, reducing undercuts may minimize the need for slides, lifters, or other complex mold mechanisms, helping improve manufacturability and production consistency.
2. Optimize Bosses for Reliable Assembly
Properly designed injection molded bosses provide stable fastening points for screws, threaded inserts, pins, and other mechanical fasteners. Boss geometry, wall thickness, ribs, and transitions should be designed to distribute loads and minimize stress concentration.
RUIBANG applies injection molding DFM principles to help optimize bosses for strength, dimensional stability, and repeatable assembly performance.
3. Use Smooth Transitions for Better Structural Integrity
Abrupt changes in wall thickness can contribute to uneven cooling, internal stress, sink marks, and warpage in injection molded parts. Smooth transitions, fillets, and properly designed radii help promote more uniform material flow and cooling.
By optimizing wall thickness, corners, ribs, bosses, and geometric transitions, RUIBANG CNC helps customers develop injection molded parts with improved manufacturability, dimensional stability, and structural performance.

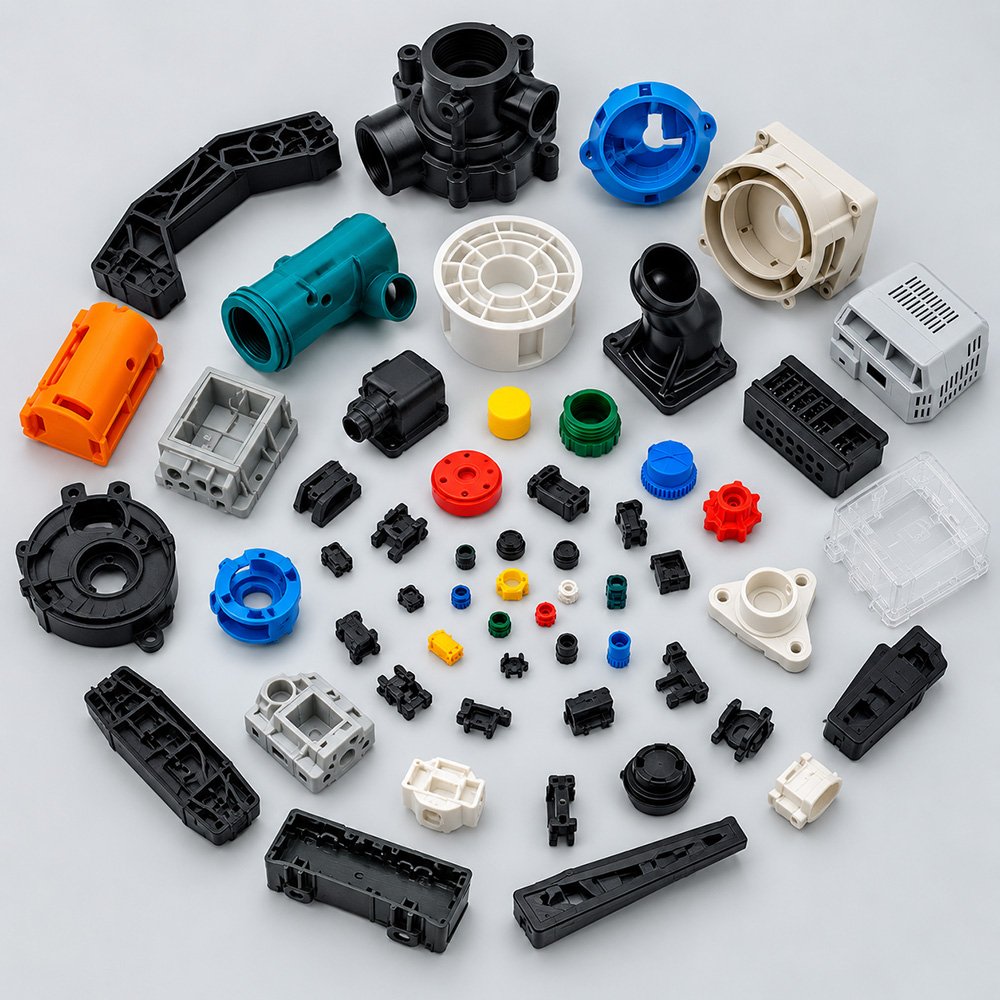

Plastic Injection Molding for Different Industries
| Industry | Description |
|---|---|
| Industrial Applications | Housings, brackets, gears, bushings, covers, and functional components for machinery and industrial equipment. |
| Electronics Applications | Housings, connectors, insulators, covers, and precision plastic components for electronic and electrical devices. |
| Automotive Applications | Interior and exterior components, ducts, reservoirs, clips, brackets, and functional automotive plastic parts. |
| Medical Applications | Device housings, connectors, tubes, disposables, fittings, and precision components for medical equipment. |
| Consumer Applications | Home appliance components, household products, toys, lifestyle products, housings, and custom plastic parts. |
| Custom Plastic Solutions | Custom materials, colors, geometries, surface finishes, and functional features for specialized applications. |
